一、鸭嘴止回阀概述
鸭嘴止回阀（又称鸭嘴型柔性止回阀、橡胶鸭嘴阀）是一种依靠介质自身流动特性实现自动启闭、无机械传动部件的柔性止回装置，核心采用弹性橡胶（通常为天然橡胶、氯丁橡胶、三元乙丙橡胶 EPDM、氟橡胶等耐腐耐磨材质）一体硫化成型，阀口呈仿生鸭嘴状结构。主要应用于市政排水、污水处理、水利泵站、化工排污、海水排放、城市管网防倒灌等场景，核心功能为正向通流、反向密封，彻底杜绝介质倒流、虹吸回流及臭气、泥沙、海水倒灌，具备无卡阻、免维护、自清洁、抗水锤、适应泥沙及杂质介质等显著优势。
Ⅰ. Overview of Duckbill Check Valve
The duckbill check valve (also known as duckbill-type flexible check valve or rubber duckbill valve) is a flexible check device that relies on the flow characteristics of the medium itself to achieve automatic opening and closing, without mechanical transmission components. Its core is made of elastic rubber (commonly natural rubber, neoprene, EPDM, fluororubber, and other corrosion- and wear-resistant materials) formed integrally through vulcanization, with a valve opening shaped like a bionic duckbill. It is mainly used in municipal drainage, sewage treatment, hydraulic pumping stations, chemical wastewater discharge, seawater discharge, and prevention of backflow in urban pipelines. Its core functions are forward flow and reverse sealing, completely preventing backflow, siphoning, and the intrusion of odors, silt, and seawater. It features notable advantages such as being jam-free, maintenance-free, self-cleaning, water hammer resistant, and capable of handling medium containing silt and impurities.
二、鸭嘴止回阀工作原理（核心运行机制）
鸭嘴止回阀的工作完全依赖介质压力差实现自动启闭，无弹簧、铰链、阀瓣等机械构件，运行逻辑分为正向开启与反向关闭两个阶段，原理严谨且无故障点：
（一）正向介质流通：自动开启，顺畅排水当管道内介质（水、污水、含杂质流体）正向流动时，介质自身的流出压力作用于鸭嘴阀内部橡胶腔体，形成向外的推力。当正向压力大于阀口的弹性闭合力（橡胶自身收缩力）时，鸭嘴型阀口自动张开，介质顺利通过阀口排出；介质流量越大、压力越高，阀口张开幅度越大，流阻极低，通流效率接近满管流通。
（二）反向介质倒流：自动密封，彻底止回当管道内出现压力失衡、停机、倒灌等情况，介质产生反向流动趋势（或外部介质向管道内倒流）时，反向压力会直接作用于鸭嘴阀外部橡胶壁，压力会迫使鸭嘴型阀口快速收紧、紧密闭合，且反向压力越大，密封贴合越紧密，实现零泄漏止回。即使在无介质、零压力状态下，橡胶鸭嘴口依靠自身弹性保持常闭状态，可阻断臭气、蚊虫、泥沙倒灌，实现静态密封。
核心原理总结“正向压力开、反向压力关，无电无机械、自密封自启闭”—— 依靠弹性橡胶结构与介质压力差，实现无能耗、无磨损、长效止回，彻底解决传统止回阀卡阻、锈蚀、密封失效、水锤冲击等问题。
II. Working Principle of the Duckbill Check Valve (Core Operating Mechanism)
The operation of the duckbill check valve entirely depends on the pressure difference of the medium to achieve automatic opening and closing. It has no mechanical components such as springs, hinges, or valve flaps. Its operation is divided into two stages: forward opening and reverse closing. The principle is precise and has no points of failure:
(1) Forward Medium Flow: Automatic Opening, Smooth Drainage When the medium (water, sewage, or fluid containing impurities) flows forward in the pipeline, the outflow pressure of the medium acts on the internal rubber chamber of the duckbill valve, creating an outward thrust. When the forward pressure exceeds the elastic closing force of the valve mouth (the inherent contraction force of the rubber), the duckbill valve mouth automatically opens, allowing the medium to pass through smoothly; the greater the flow and pressure of the medium, the wider the valve opens, resulting in extremely low flow resistance and flow efficiency close to full pipe capacity.
(2) Reverse Medium Backflow: Automatic Sealing, Complete Check When a pressure imbalance, shutdown, or backflow occurs in the pipeline, causing the medium to tend to flow in reverse (or external medium to backflow into the pipeline), the reverse pressure directly acts on the outer rubber wall of the duckbill valve. This pressure forces the duckbill valve mouth to close quickly and tightly. The greater the reverse pressure, the tighter the seal, achieving zero-leakage backflow prevention.
Even in the absence of medium or under zero pressure, the rubber duckbill maintains a normally closed state due to its own elasticity, blocking odors, insects, and sediment backflow to achieve a static seal.
Core principle summary: ‘Forward pressure opens, reverse pressure closes; no electricity, no mechanical parts; self-sealing, self-operating’ — relying on the elastic rubber structure and medium pressure difference, it achieves energy-free, wear-free, long-lasting backflow prevention, thoroughly solving problems of traditional check valves such as jamming, corrosion, seal failure, and water hammer impact.
三、鸭嘴止回阀核心结构特点（支撑原理的关键）
- 全橡胶一体成型：无金属部件外露（法兰内置），耐酸碱、耐海水、耐污水腐蚀，适应恶劣介质环境；
- 无活动机械部件：无阀瓣、弹簧、销轴，杜绝卡滞、缠绕、锈蚀故障，免维护；
- 仿生鸭嘴流道：流道平滑无死角，自清洁不淤积，适配含固体颗粒、纤维、泥沙的污水介质；
- 柔性缓冲特性：启闭无撞击，大幅降低水锤效应，保护管道及泵站设备。
III. Key Structural Features of the Duckbill Check Valve (Core Principle of Support)
1. All-Rubber Integrated Molding: No exposed metal parts (flange built-in), resistant to acids, alkalis, seawater, and sewage corrosion, suitable for harsh media environments;
2. No Moving Mechanical Parts: No valve disc, spring, or pin, eliminating sticking, entanglement, and corrosion failures, maintenance-free;
3. Bionic Duckbill Flow Path: Smooth flow path with no dead corners, self-cleaning without sediment accumulation, compatible with sewage containing solid particles, fibers, and silt;
4. Flexible Cushioning Feature: Opens and closes without impact, greatly reducing water hammer effect, protecting pipelines and pumping station equipment.
四、鸭嘴止回阀标准连接方式
鸭嘴止回阀的连接方式适配市政、工业、水利等不同安装场景，均为法兰式标准化连接（主流配置），安装便捷、密封可靠，具体分类及适用场景如下：

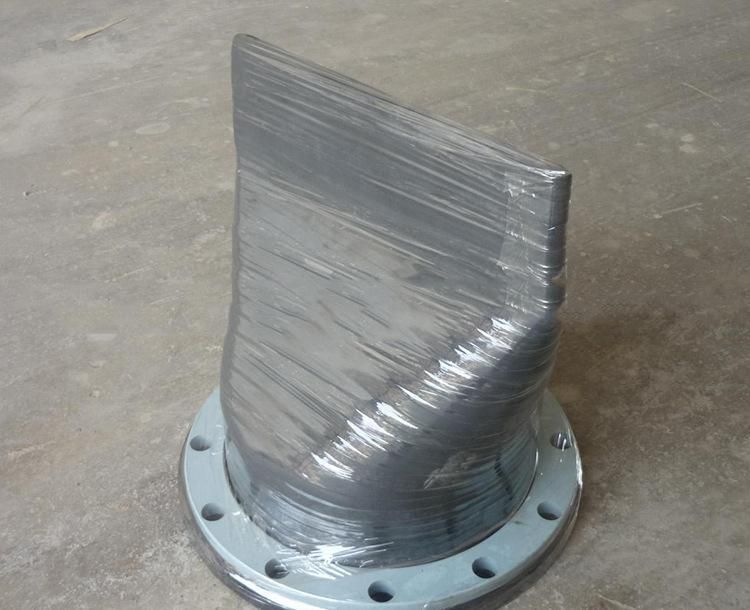

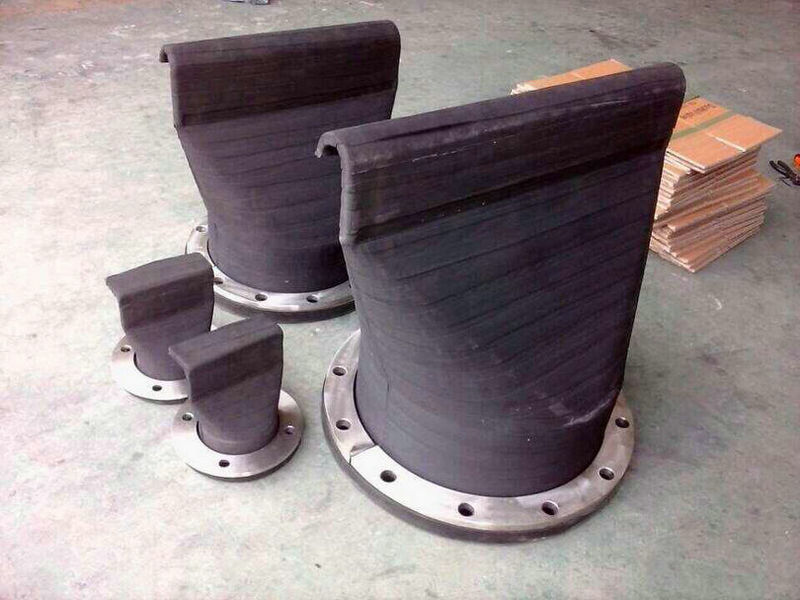

1. 法兰式连接（最常用、首选型）
结构形式：阀门两端配备内置加强法兰（碳钢 / 不锈钢），与管道法兰通过螺栓直接紧固，中间加装橡胶垫片密封；
适用场景：市政主排水管道、污水处理厂、大型泵站、工业排污主管网；
优势：连接强度高、密封严密、拆卸维护方便、承压能力强，适配 DN50~DN2000 全口径。

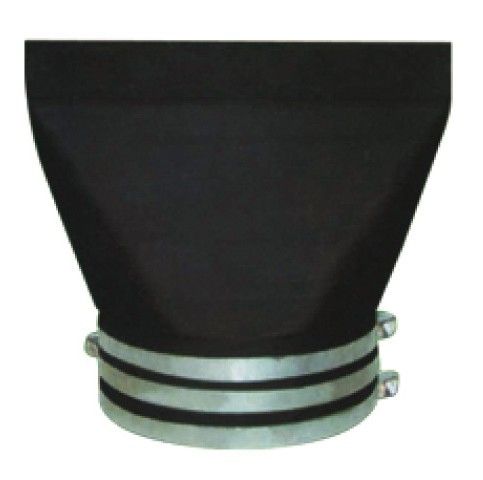

2. 卡箍式连接（沟槽式）
结构形式：阀门端部设计为沟槽接口，采用不锈钢卡箍快速锁紧连接；
适用场景：轻型排水管道、室内管网、改造工程、快速安装场景；
优势：安装效率极高，无需焊接，适配中小口径管道。
3. 套接式连接（承插式）
结构形式：阀门一端为承口结构，直接套插入管道外壁，配合密封胶 / 卡箍固定；
适用场景：塑料管道（PVC/PE）、小型排水支管、简易排污系统；
优势：施工简便，成本低，适用于低压、小口径场景。
4. 焊接式连接
结构形式：阀门法兰端与金属管道直接焊接为一体；
适用场景：高压管道、化工腐蚀性介质、永久性密闭管网；
优势：零泄漏、整体性强，适用于严苛工况。
5. 法兰变径 / 定制连接
结构形式：根据现场管道口径定制变径法兰、异形法兰；
适用场景：老旧管网改造、非标管道对接、特殊安装空间。
Ⅳ. Standard Connection Methods for Duckbill Check Valves
The connection methods of duckbill check valves are suitable for different installation scenarios such as municipal, industrial, and water conservancy projects. All adopt standardized flange connections (mainstream configuration), which are easy to install and reliably sealed. The specific classifications and applicable scenarios are as follows:
1.Flanged Connection (Most Common, Preferred Type)
Structure: Both ends of the valve are equipped with built-in reinforced flanges (carbon steel/stainless steel), which are directly fastened to pipeline flanges with bolts, with rubber gaskets in between for sealing;
Applicable Scenarios: Municipal main drainage pipelines, sewage treatment plants, large pumping stations, industrial wastewater main pipelines;
Advantages: High connection strength, tight sealing, easy disassembly and maintenance, strong pressure capacity, suitable for full diameters DN50~DN2000.
2. Clamp Connection (Grooved Type)
Structure: The valve end is designed as a grooved interface, using stainless steel clamps for quick locking connection;
Applicable Scenarios: Lightweight drainage pipelines, indoor piping networks, renovation projects, rapid installation scenarios;
Advantages: Extremely high installation efficiency, no welding required, suitable for medium and small diameter pipelines.
3. Socket Connection (Spigot Type)
Structure: One end of the valve is a socket structure, directly inserted into the exterior of the pipe, and fixed with sealant/clamp;
Applicable Scenarios: Plastic pipes (PVC/PE), small drainage branch lines, simple wastewater systems;
Advantages: Simple construction, low cost, suitable for low-pressure, small-diameter scenarios.
4. Welded Connection
Structure: The flange end of the valve is directly welded integrally with the metal pipeline;
Applicable Scenarios: High-pressure pipelines, chemically corrosive media, permanently sealed pipeline networks;
Advantages: Zero leakage, strong integrity, suitable for harsh working conditions.
5. Flange Reducer / Custom Connection
Structure: Customized reducer flanges or special-shaped flanges according to the on-site pipe diameter;
Applicable Scenarios: Old pipeline network renovation, non-standard pipeline interfaces, special installation spaces.
五、总结
鸭嘴止回阀以弹性橡胶鸭嘴结构 + 介质压力差为核心原理，实现无机械、无能耗、长效止回，是传统旋启式、升降式止回阀的升级替代产品；其连接方式以法兰式为主流，兼容卡箍、套接、焊接等形式，全面适配给排水、污水处理、水利、化工等领域的标准化与非标安装需求，具备密封可靠、免维护、抗杂质、防倒灌、寿命长等核心优势。
V. Summary:
The duckbill check valve, based on the elastic rubber duckbill structure and the core principle of medium pressure difference, achieves non-mechanical, energy-free, long-lasting check functionality, making it an upgraded replacement for traditional swing check valves and lift check valves. Its main connection type is flange, while it is also compatible with clamp, socket, and welded forms, fully adapting to both standardized and non-standard installation requirements in fields such as water supply and drainage, sewage treatment, hydraulic engineering, and chemical industry. It has core advantages such as reliable sealing, maintenance-free operation, impurity resistance, backflow prevention, and long service life.
